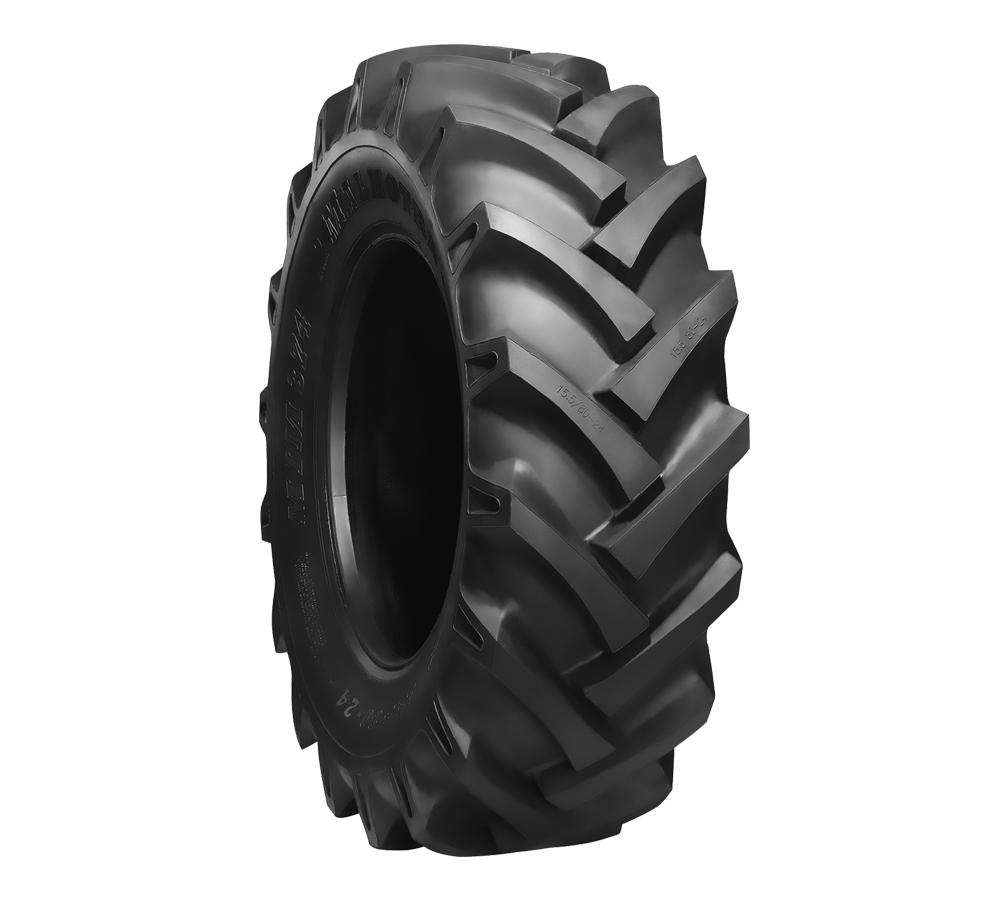

405/70-20 14 PR MRL MIM 374 154A6/150A8 R-1 TL

Description

With a state of the art manufacturing facility in India, MRL produces solutions for applications including agricultural tyres, industrial tyres, OTR tyres and commercial tyres. Representing more than a value choice, MRL tyres are produced using the latest in tyre production techniques and are now accepted with many major OEMs. A continuously expanding production base has allowed for a comprehensive product range with over 1800 SKUs now exported to more than 90 countries worldwide.

Features

  • Multi-angled and bold lug-bars for service durability and self cleaning.
  • Suitably designed lug bar spacing for comfort drive & added traction.
  • Strong and sturdy body plies for longer service durability.
  • Tread contact patch with broader lugs for heavy duty prime-movers.

Specification

Application
PLANT
Size
405/70-20
Equivalent Size 1
16.0/70-20
Brand
MRL
Pattern
MIM 374
Load/Speed Index
154A6/150A8
Ply Rating
14
TT/TL
TL
Construction
BIAS
Nominal Section Width
405
Profile
70
Rim
20
TRA
R-1
Recommended Rim
13
Permitted Rim
14 12SDC
Section Width
418 mm
Overall Diameter
1075 mm
Static Load Radius
494.50 mm
Rolling Circumference
3171.25 mm
Tread Depth
30.00 mm
Max Load (KG)/Speed (KM/H) 1
3750/30
Max Load (KG)/Speed (KM/H) 2
3350/40
Inflation Pressure Bar
3.50
ECE 106
Yes
