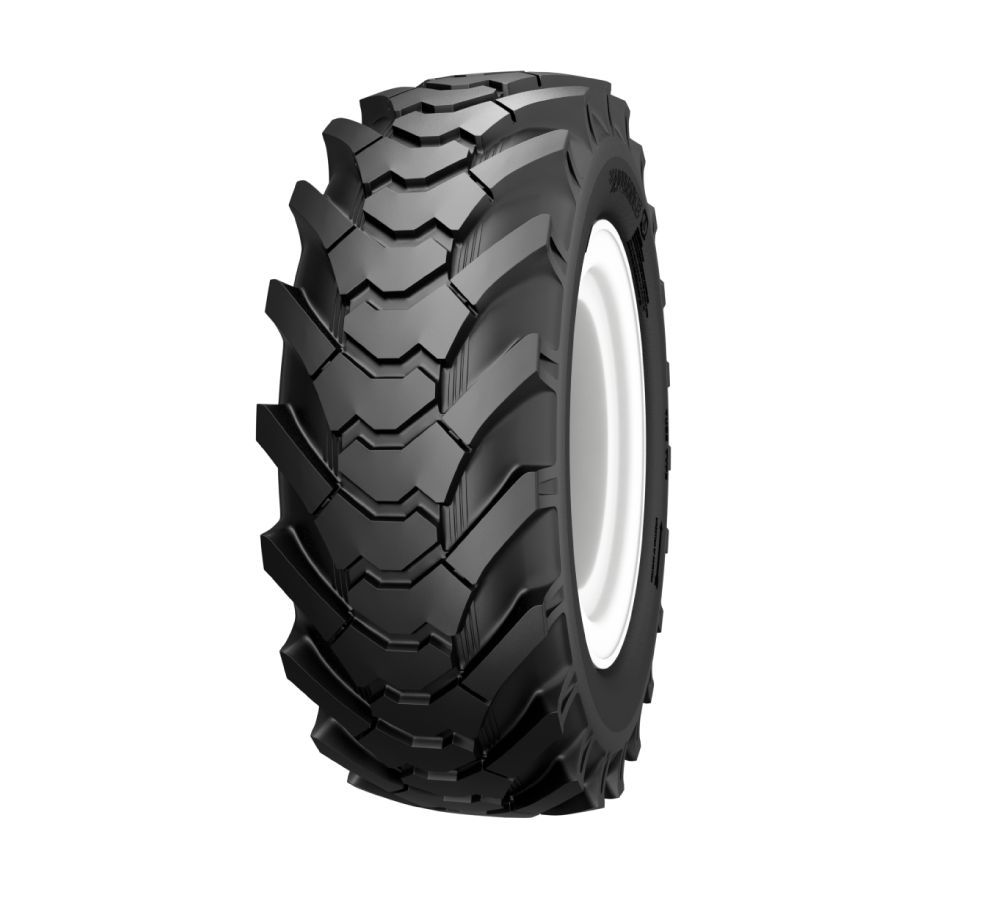

12.0-18 MPT 12 PR ALLIANCE 317 MPT 145A6 R-4 TL

Description

The Alliance 317 range of tyres have been designed for use with various equipment including backhoes, loaders, telehandlers and utility tractors. The unique tread design provides for good self-cleaning and excellent traction properties under severe conditions. A central tread bar helps to improve roadability and driver comfort whilst a strong casing provides stability and durability. Heat-resistant and wear-resistant compounds used in the manufacturing process help to further increase the tyre's life cycle.

Features

  • Bias ply multi-purpose tyres for various equipment.
  • Good traction and self-cleaning properties.
  • Good roadability and driver comfort.
  • Some sizes G rated for speeds of up to 90 km/h.
  • Heat-resistant and wear-resistant compound.

Specification

Application
PLANT
Size
12.0-18 MPT
Size Suffix
MULTI PURPOSE TYRE
Brand
ALLIANCE
Pattern
317 MPT
Load/Speed Index
145A6
Ply Rating
12
TT/TL
TL
Construction
BIAS
Nominal Section Width
12.0
Rim
18
TRA
R-4
Recommended Rim
9
Permitted Rim
11
Section Width
294 mm
Overall Diameter
949 mm
Static Load Radius
420 mm
Rolling Circumference
2770 mm
Max Load (KG)/Speed (KM/H) 1
2900/30
Max Load (KG)/Speed (KM/H) 2
2580/50
Inflation Pressure Bar
4.50
Specification 1
HEAT RESISTANT COMPOUND
Specification 2
WEAR RESISTANT COMPOUND
Specification 3
NON HIGHWAY SERVICE
ECE 106
Yes
